Westcott Rapid Box Octa – Review




Overview


Price at time of review: £149.00

Website for product:
www.fjwestcott.com/the-rapid-box-26-octa

Manufacturer:

Product Type:

Design / Features








Performance








Price








Total Score







User Rating
42 total ratings



Plus Points


Compact : Fast to set up : Built to last

Minus Points


No inner baffle : Can't mount flash sideways


9
Posted April 1, 2015 by


Full Article



If you take your speedlights on location you already know how nice it is to work with lightweight gear that can be set up and packed down really fast. So when it comes to choosing a softbox to partner my speedlight, I’m looking for the same qualities of speed and portability. The Westcott Rapid Box promises both and recently I got to put it through some very thorough testing.

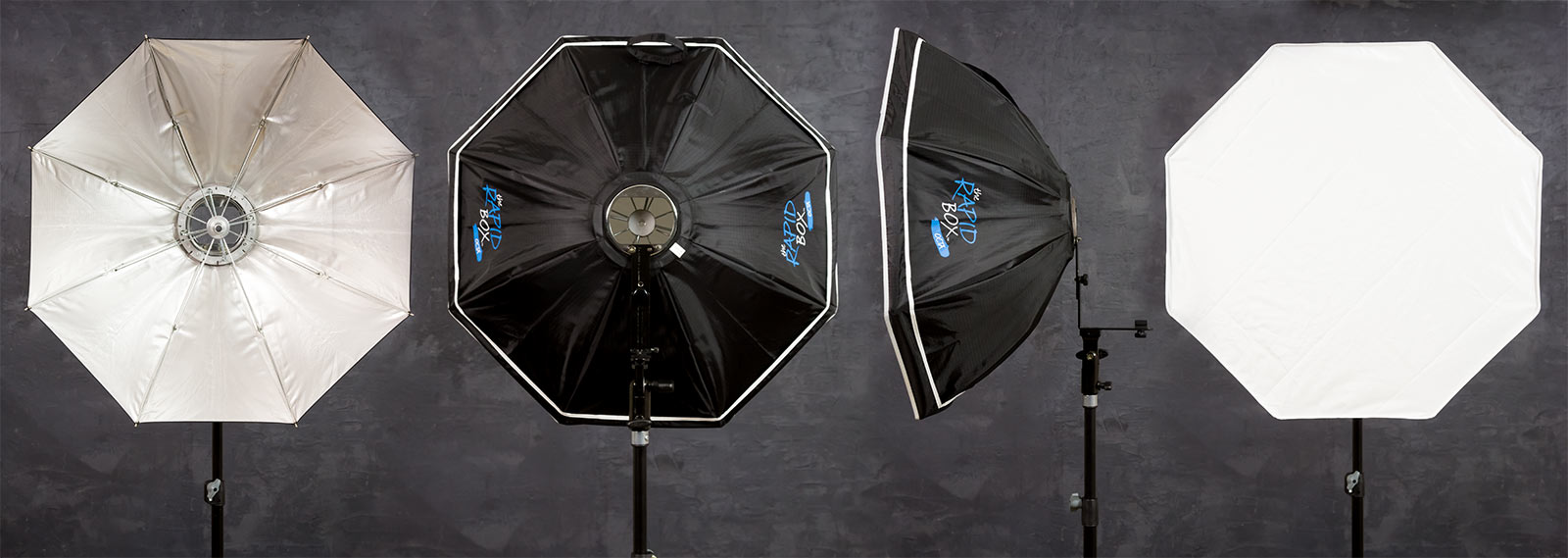

The 26” Westcott Rapid Box Octa is part of the Rapid Box family which includes both larger, smaller and stripbox designs. All are quick to set up thanks to their umbrella like design and will work with pretty much any speedlite.

Westcott-Octa-1What’s in the box?

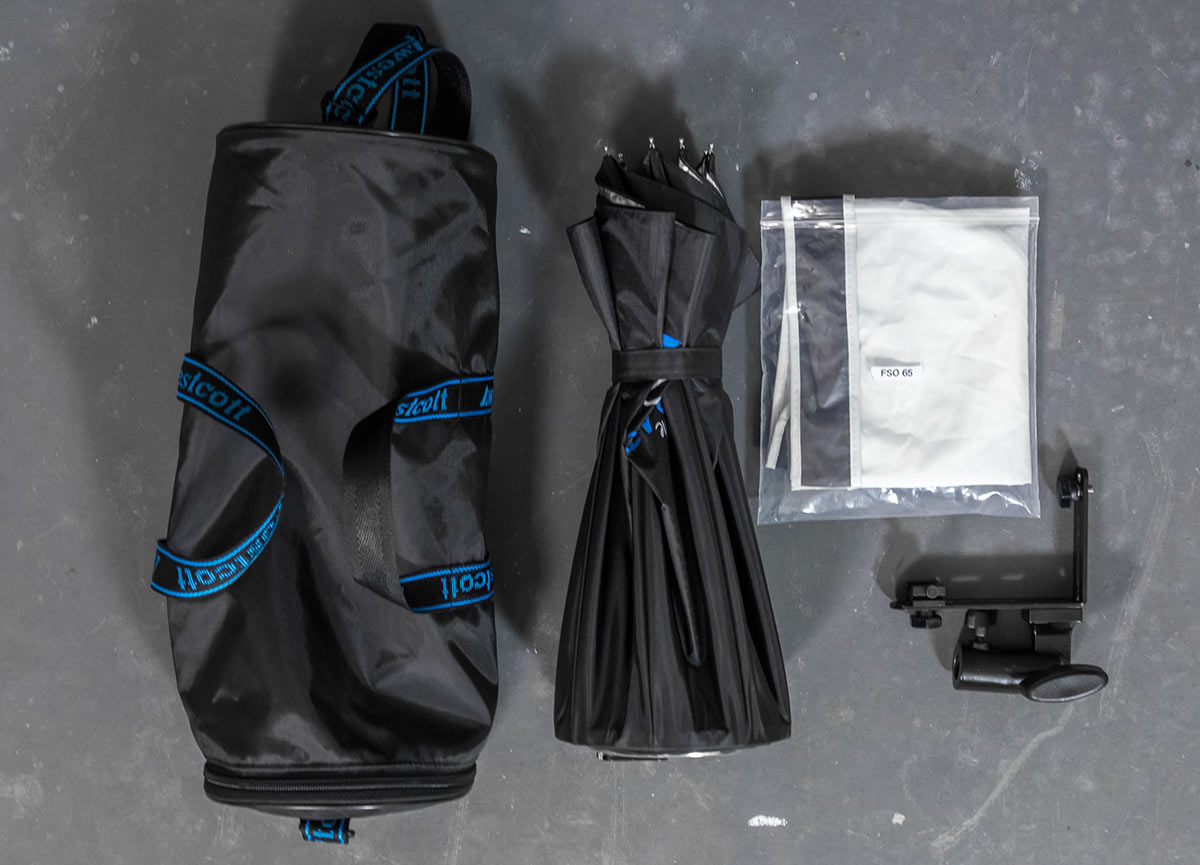

The Rapid Box comes in a surprisingly small soft bag and when I first picked it up I was convinced something was missing. Fortunately I was wrong and inside was a metal tilting bracket, the softbox itself and a one stop diffusing panel for the front.

Performance

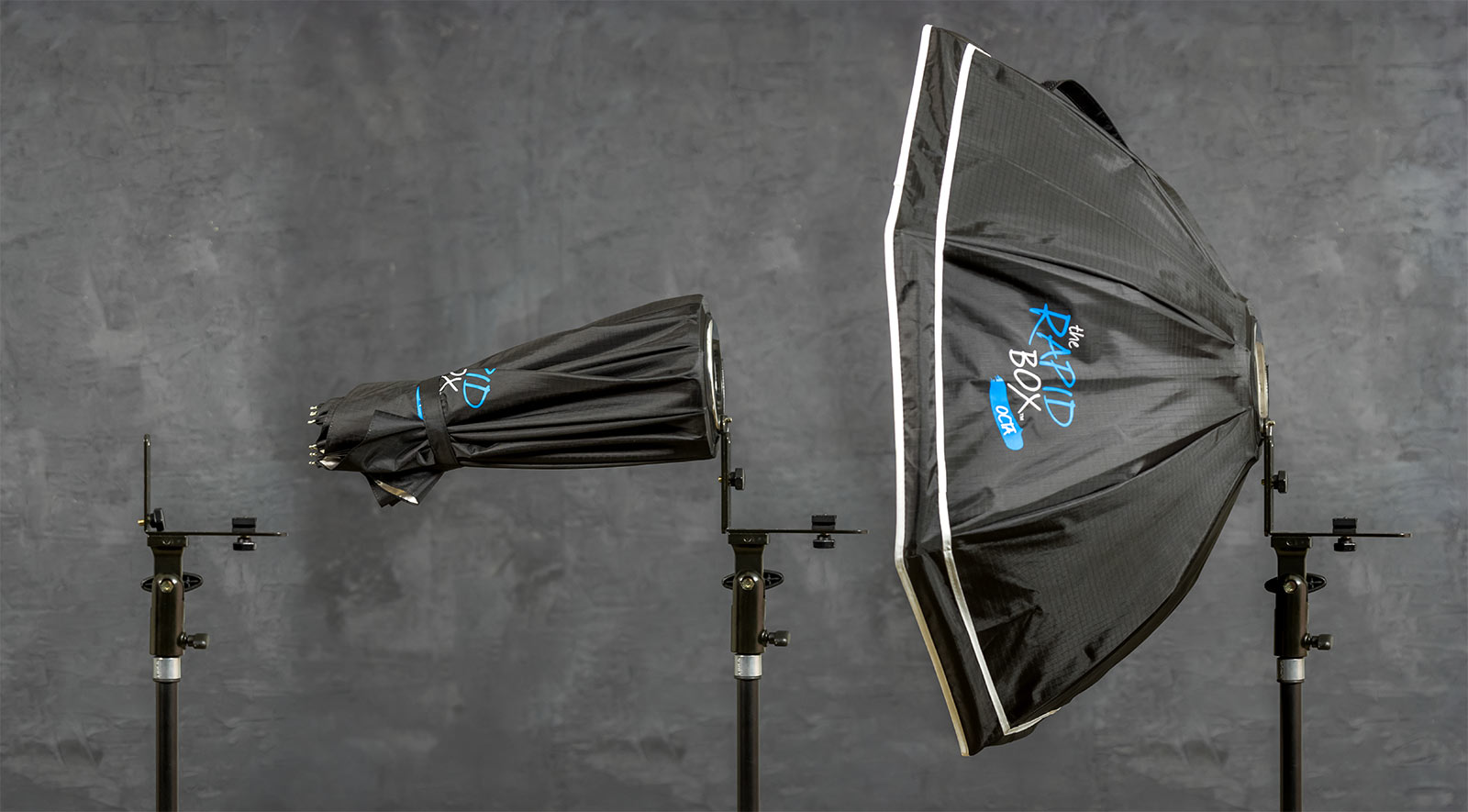

The Rapid Box opens just like an umbrella and just needs a slight twist to lock it open. The front diffusing panel is fast to fit and is held in place without the need for any fasteners. Attaching the bracket to the softbox is the only part which feels a little clunky but after a couple of goes I had mastered it.

With 7.5cm of vertical travel and 5cm of horizontal adjustment, I had no problems getting any of my speedlites to slot inside. However there was a problem with my Streaklights which are taller and wider then a standard speedlight and have an exposed “bare bulb” on the front. They fitted on to the bracket just fine but the protective glass cover for the bulb hit a large lump of metal about 5cm inside meaning some of the flash tube was outside the softbox. To be fair the Streaklight is a pretty unique flash and most potential buyers of the Rapid Box Octa will be using Speedlites which will work just fine.

Westcott-Octa-3

At just 26” this is a fairly small sized softbox and you need to keep that in mind. There was noticeable fall off of light when shooting full length portraits which is to be expected and to be honest, desired. I mostly used the Rapid Box just for head shots and it worked perfectly.

With no inner baffle I was concerned about hot spotting on the front panel. I found no such problems as long as I pulled out the 14mm wide angle panel on my flash.

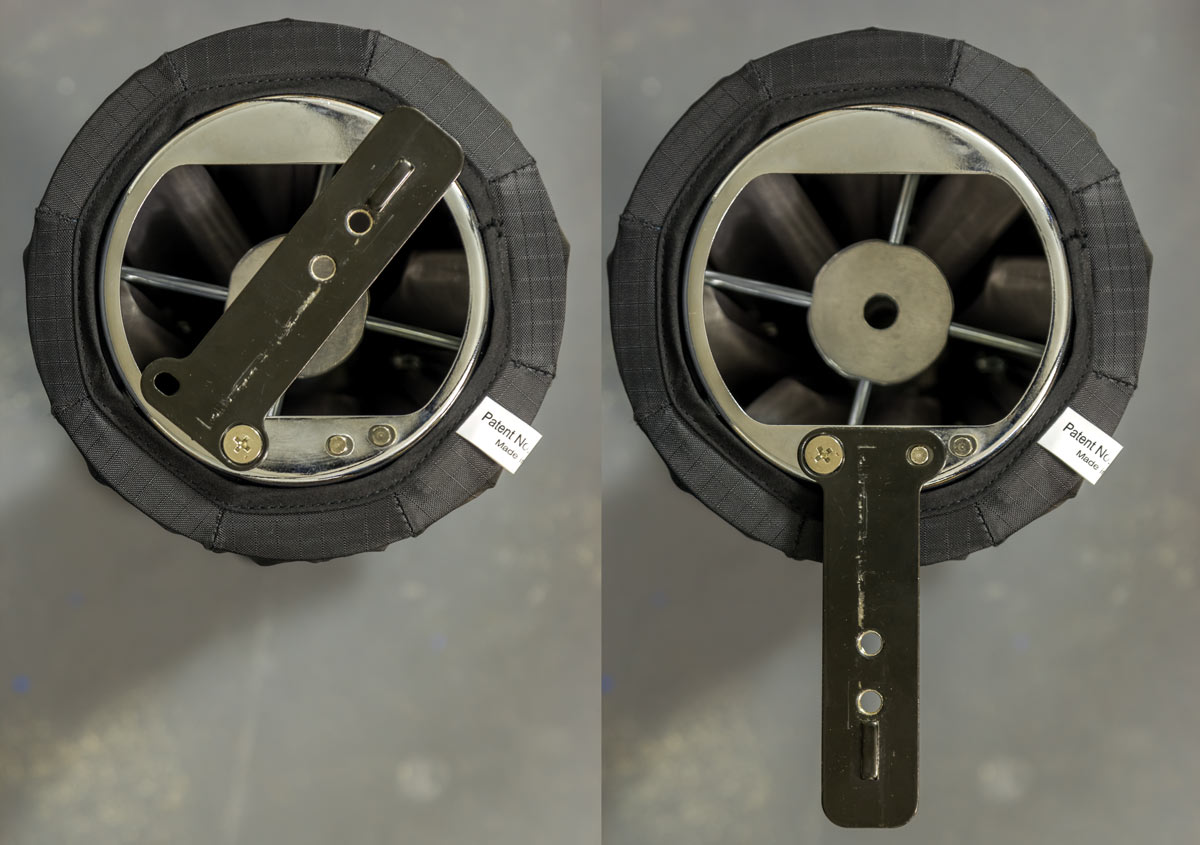

Travelling with the Westcott Rapid Box Octa was a total joy. It weighed next to nothing and thanks to natty design touches such as the folding arm, it fitted in to a tiny bag that slid inside my light stand bag.

Westcott-Octa-5

Downsides
Well, there’s always going to be a few drawbacks. The small diameter might be an issue for some photographers as might be the lack of an inner baffle. For me the main areas of concern were round the back where the flash attached to the bracket.

Westcott-Octa-4

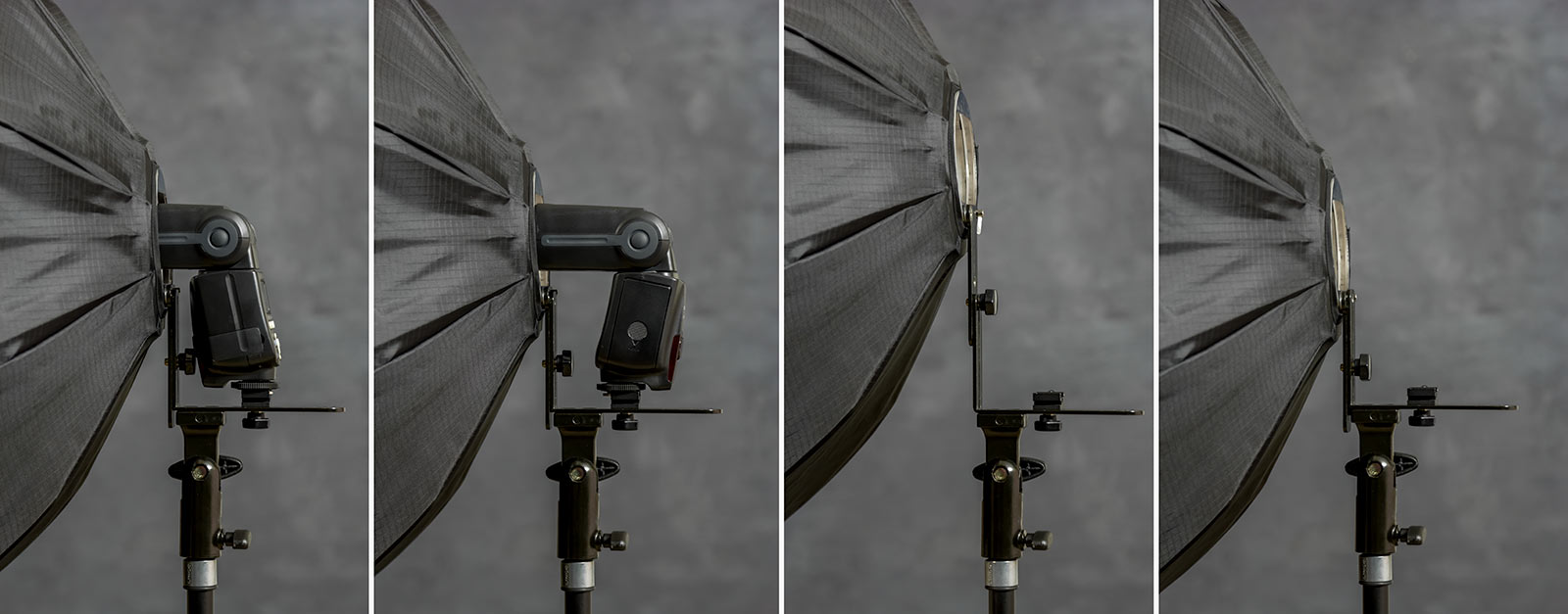

I found I could mount the flash forward or spin the head 180 degrees and mount it backwards but the cold shoe doesn’t swivel, so there’s no way to mount it sideways. If you’re shooting with radio triggers that’s not an issue but optical triggers that need line of sight might come unstuck here.

Finally it would’ve been nice to see a black cover for the flash to stop light bouncing out the back of the box.

It’s worth noting that Westcott have addressed most of these issues with the Rapid Box Duo but that does come in at almost double the price here in the UK.

Conclusion
I dragged the Westcott Rapid Box all over the place, from studio shoots to live lighting demos at a four day trade show and not once did the Rapid Box let me down. Yes there are some niggles which potential owners should be aware of but if you’re in the market for a medium sized, ultra-portable speedlight softbox, this should be high on the short list.

Westcott-Octa-2


Gavin Hoey
